Zonk Machine on Ebay

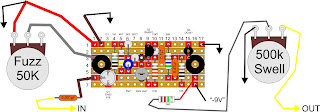

Really don't know why I did this. But I guess it was pretty interesting to do some fake investigative work. So here's what I came up with:



Just like the schematic over at fuzz central. Except Q2 is a silicon transistor & the 470k resistor is a trimpot. (470k?)
But I really have no idea what I'm talking about...
